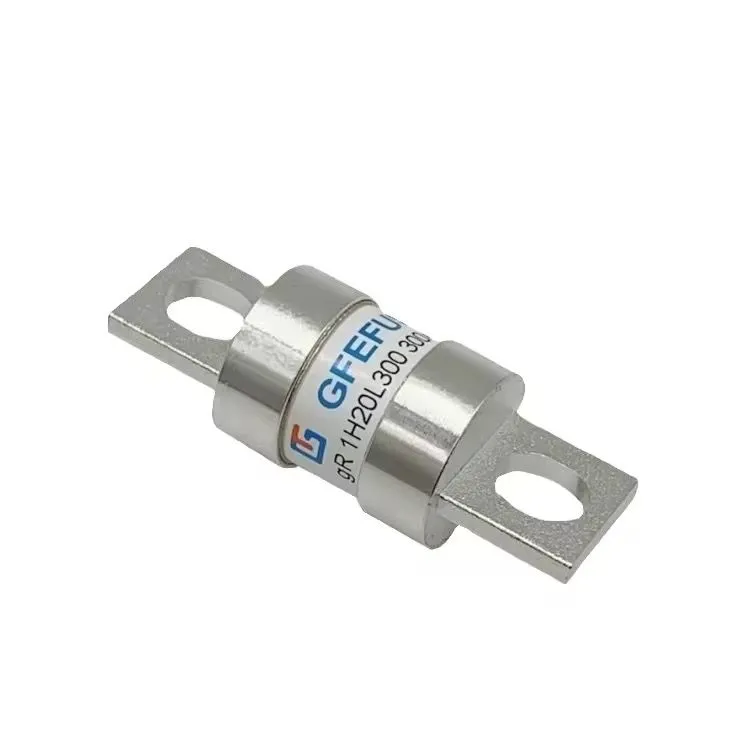

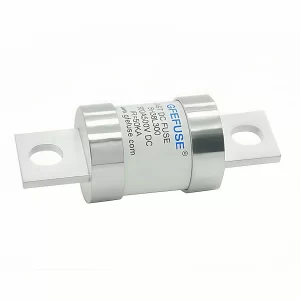

1H20E Series AC/DC (EV) fuse
1. Purpose and use
This series of fuses are applicable to rated DC voltage (125V / 150V), AC 300V, rated current 50A-400A and high sectioning capacity (50kA AC / 20kA DC). It is widely used in semiconductor protection, mobile forklift, electric elevator, charger, power supply, on-board battery, on-board circuit system and inverter integrated protection. At the same time, it has the characteristics of strong current limiting capacity, large breaking capacity and fast short-circuit breaking speed. Can withstand temperature shock, mechanical shock, current shock, chemical load, etc. Performance reference UL248-13.
2. Normal working conditions
Normal operating conditions of ambient air temperature: -5 ℃ ~ 40 ℃; allowable operating conditions: -40 ℃ ~ +125 ℃;
3. Use category
Full range fast fuse (aR)
4. Structural characteristics
The melting pipe of the product is made of high-temperature resistant ceramic materials, with high flame retardant performance and strong hardness.
The melt is sealed in the melting tube with a variable cross-section melt made of 99.99% pure silver. The melting tube is filled with chemically treated high-purity quartz sand and specially treated chemical materials as arc extinguishing medium. Silver plating on the contact surface ensures reliable electrical performance and reduces temperature rise and power consumption; Both ends of the melt are firmly connected with the contact through spot welding, which improves the safety and reliability of breaking short-circuit fault current.
5. Main parameters
| NO: | Product model | Rated current (A) | Pre-arc I²t (A²Sec) | Clearing I²t (A²Sec) | Power Loss (W) |
|---|---|---|---|---|---|
| 1 | 1H20E050 | 50 | 228 | 520 | 5.2 |
| 2 | 1H20E060 | 60 | 326 | 740 | 5.9 |
| 3 | 1H20E070 | 70 | 450 | 3000 | 6.6 |
| 4 | 1H20E080 | 80 | 650 | 5000 | 7.4 |
| 5 | 1H20E100 | 100 | 1150 | 11000 | 8.9 |
| 6 | 1H20E125 | 125 | 1800 | 17000 | 11 |
| 7 | 1H20E150 | 150 | 2560 | 24500 | 13 |
| 8 | 1H20E200 | 200 | 4700 | 43000 | 17 |
| 9 | 1H20E250 | 250 | 7400 | 67000 | 21 |
| 10 | 1H20E300 | 300 | 10510 | 95000 | 26 |
| 11 | 1H20E350 | 350 | 15200 | 132000 | 29 |
| 12 | 1H20E400 | 400 | 20000 | 164000 | 34 |
