Description

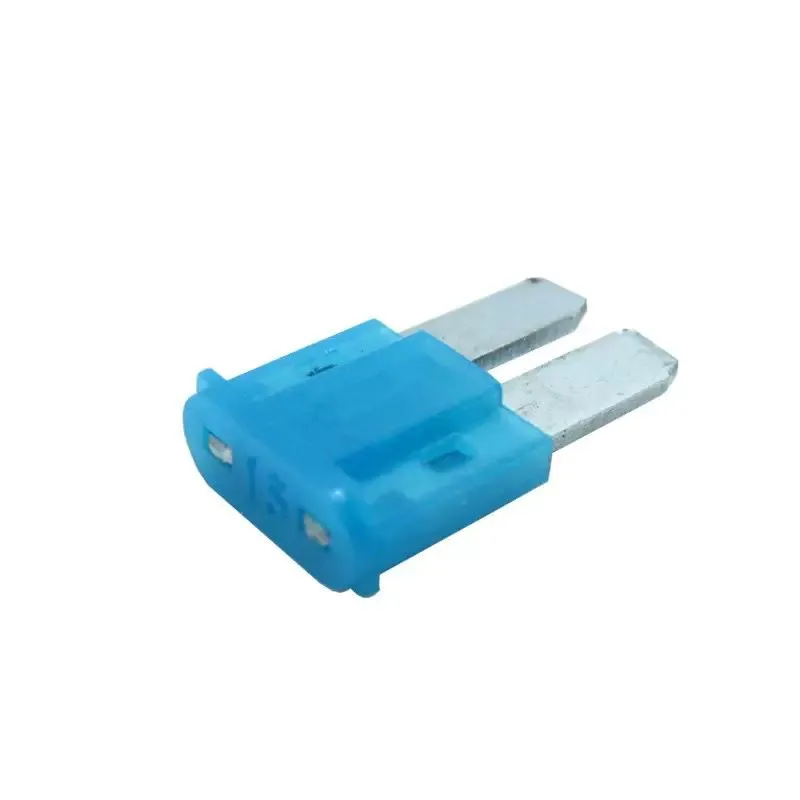

Micro2 Blade Fuse
1. Overview
Micro2 Car Fuse
Fast Acting For Rated Voltage Up To 32V DC
Rating: 5A to 30A
Metal: Zinc Alloy Tin Plated
Body: Nylon 66
Temperature Rating: -45°C ~ +125°C
Certification: ROHS
2. Technical Specifications
| Parameter | Value |
|---|---|
| Voltage Rating | 32VDC |
| Interrupting Ratings | 1000A@32VDC |
| Metal Material | Zinc Alloy with Tin Plated |
| Housing Material | Nylon66 |
| Ambient Temp | -45℃ ~ +125℃ |
3. Time-Current Characteristics
| % Of Ampere Rating | Opening Time |
|---|---|
| 110% | 100 hours Min |
| 135% | 0.75 sec Min; 120 sec Max |
| 160% | 0.25 sec Min; 50 sec Max |
| 200% | 0.15 sec Min; 5 sec Max |
| 350% | 0.04 sec Min; 0.5 sec Max |
| 600% | 0.02 sec Min; 0.1 sec Max |
4. Part Numbers
| Part Number | Amperage | Body Color |
|---|---|---|
| 5 | 5A | 0000 |
| 7.5 | 7.5A | 0000 |
| 10 | 10A | 0000 |
| 15 | 15A | 0000 |
| 20 | 20A | 0000 |
| 25 | 25A | 0000 |
| 30 | 30A | 0000 |
