automotive fuse holder panel mount
Product description

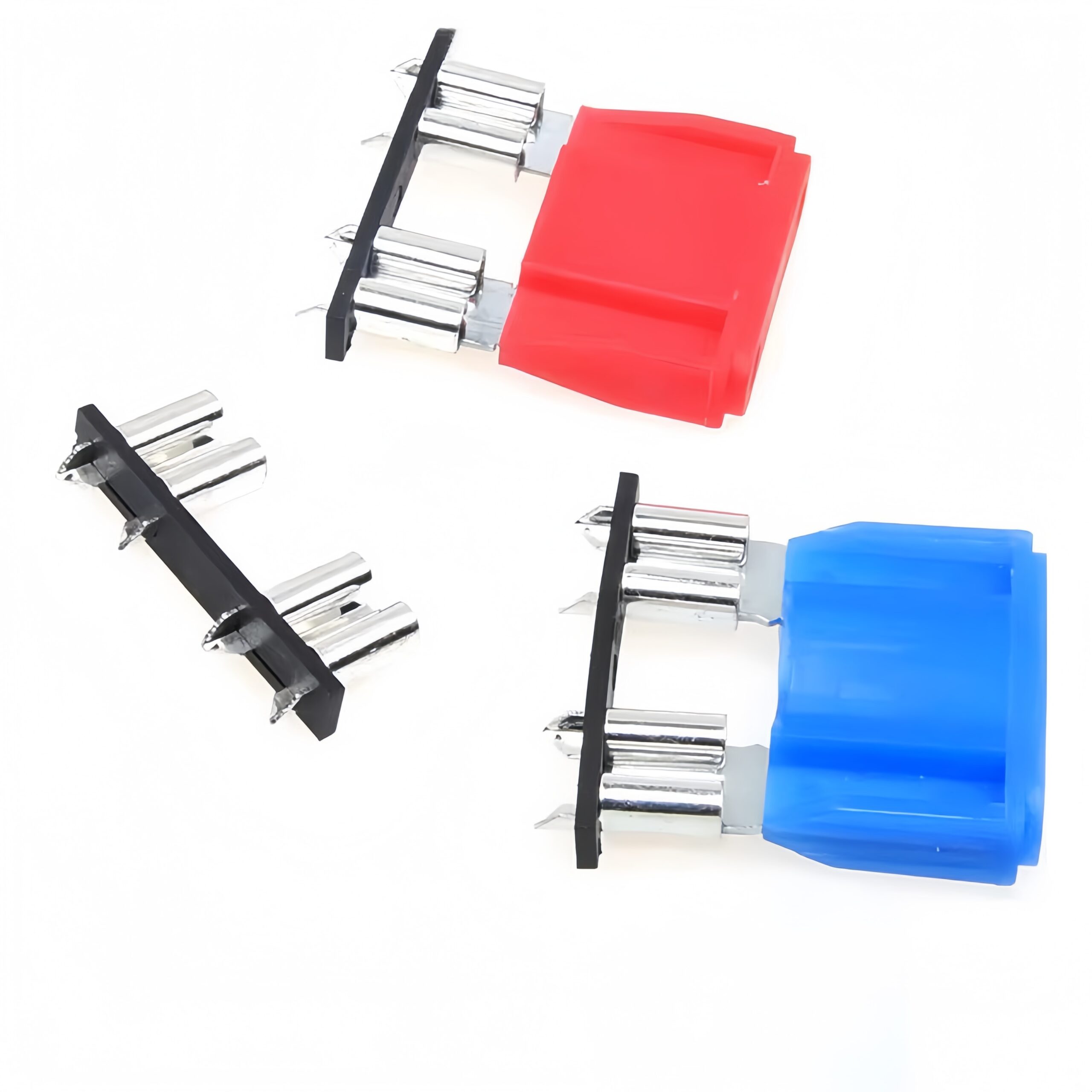

Product model: GF-700 Maxi Blade Fuse Holder , Fuse Block PCB Mount
1. Terminal: Tin plated brass
2. Insulator material: PA66, glass fiber 15%
3. No burrs or sharp edges
4. Used for the largest blade fuse
6. Electrical rating: 20A -100A 32Vdc
7. Insertion and extraction force: minimum 1kg
8. Insulation strength: minimum 2000V AC
9. Insulation resistance: minimum 100m Ω 500VDC
10. Contact resistance: maximum 50m Ω
Project blade fuse clip
Suitable for ATM Maxi blade fuses
Installation method: PC board through-hole
