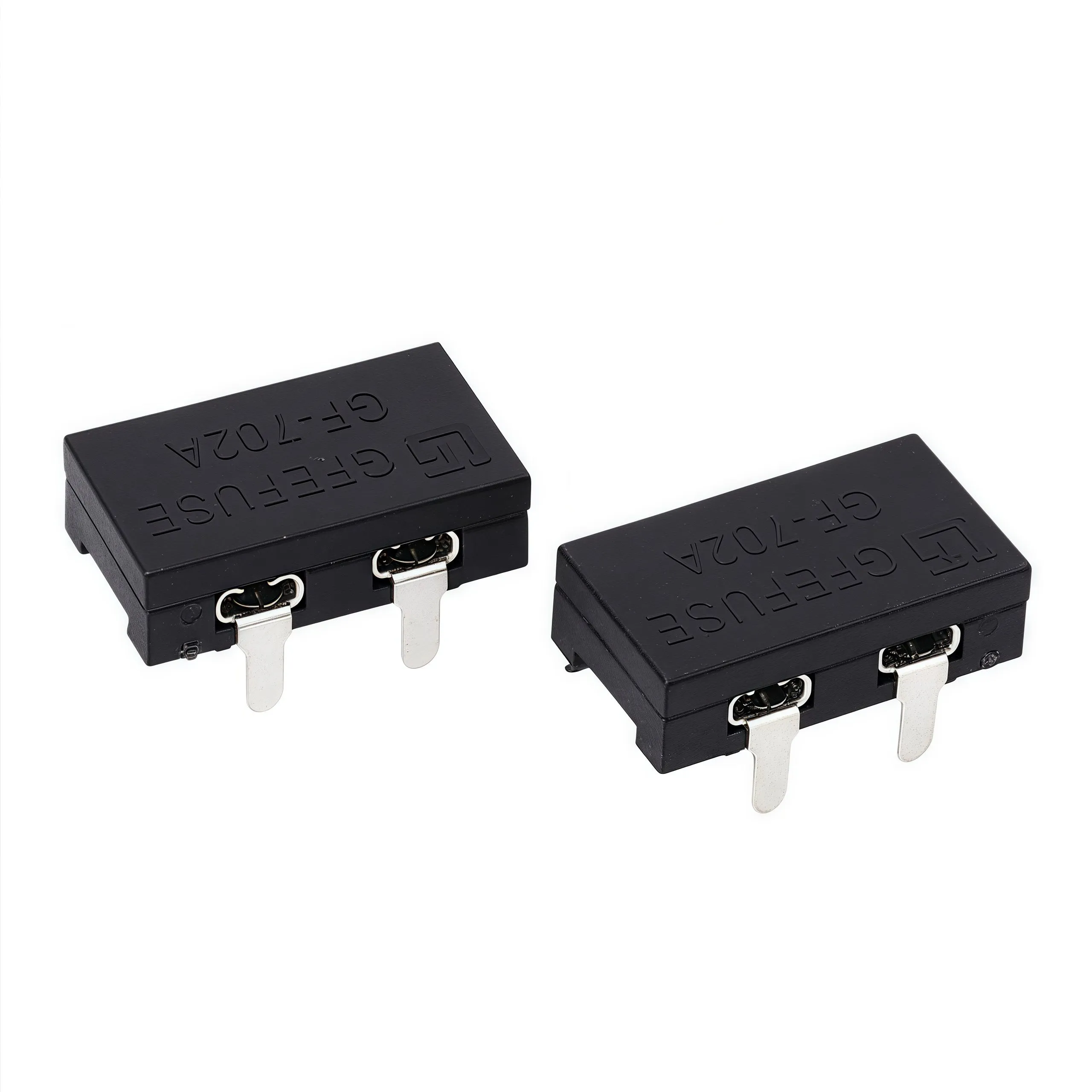

GF-702 ATO horizontal automobile fuse holder clip (PCB welding type)blade fuse holder

GF-702 ATO horizontal automobile fuse holder clip (PCB welding type)blade fuse holder

描述

GF-702 ATO horizontal automobile fuse holder clip (PCB welding type) blade fuse holder

  1. Product size installation diagram:
    Installation Diagram 1 Installation Diagram 2 Installation Diagram 3 Installation Diagram 4 Installation Diagram 5
  2. Product introduction:
    • Material: Contacts–brass, T=0.3mm; Base: PBT UL-94V0
    • Terminal finish: Tin plated
    • Practical: Medium size automobile insert fuse (GFEFUSE® GF-B series automobile insert fuse medium size)
    • Suitable rated current: 30A @ 500VAC
    • Insertion and extraction force: 1Kg Min
    • Dielectric Strength: Min. AC1000V
    • Contact Resistance: Max 50mΩ
    • Temperature rise: 130° Max
    • Insulation Resistance (at 500V DC): 100mΩ
  3. Attention: Product size changes are not notified.
