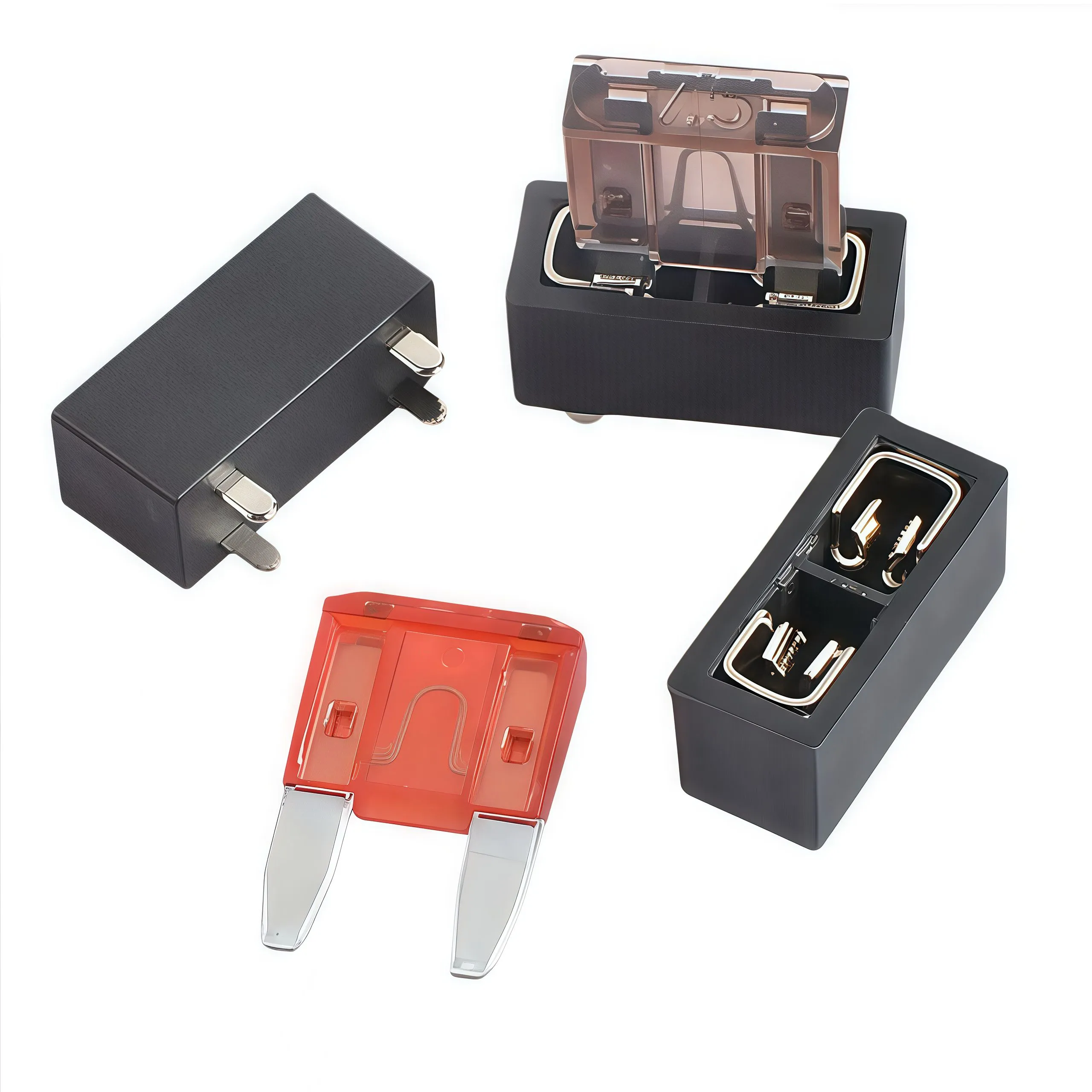

GF-C41 automotive fuse holder, blade fuse holder, mini fuse holder

  1. Dimensions (mm):
    Dimension 1 Dimension 2 Dimension 3
  2. Product Introduction:
    • Product Model: GF-C41 (Brand: GFEFUSE GongFu)
    • Material: Contacts–brass, T=0.4mm
    • Insulator: Glass Filled PBT, 94-V0
    • Terminal Finish: Tin plated
    • Quality: Removed burrs and sharp edges
    • Application: MINI auto plug fuse
    • Suitable Rated Current: 30A @ 500VAC
    • Insertion and Extraction Force: 1Kg Min
    • Dielectric Strength: Min. AC1000V
    • Contact Resistance: Max 50mΩ
    • Temperature Rise: 50° Max
    • Insulation Resistance at 500V DC: 100MΩ
