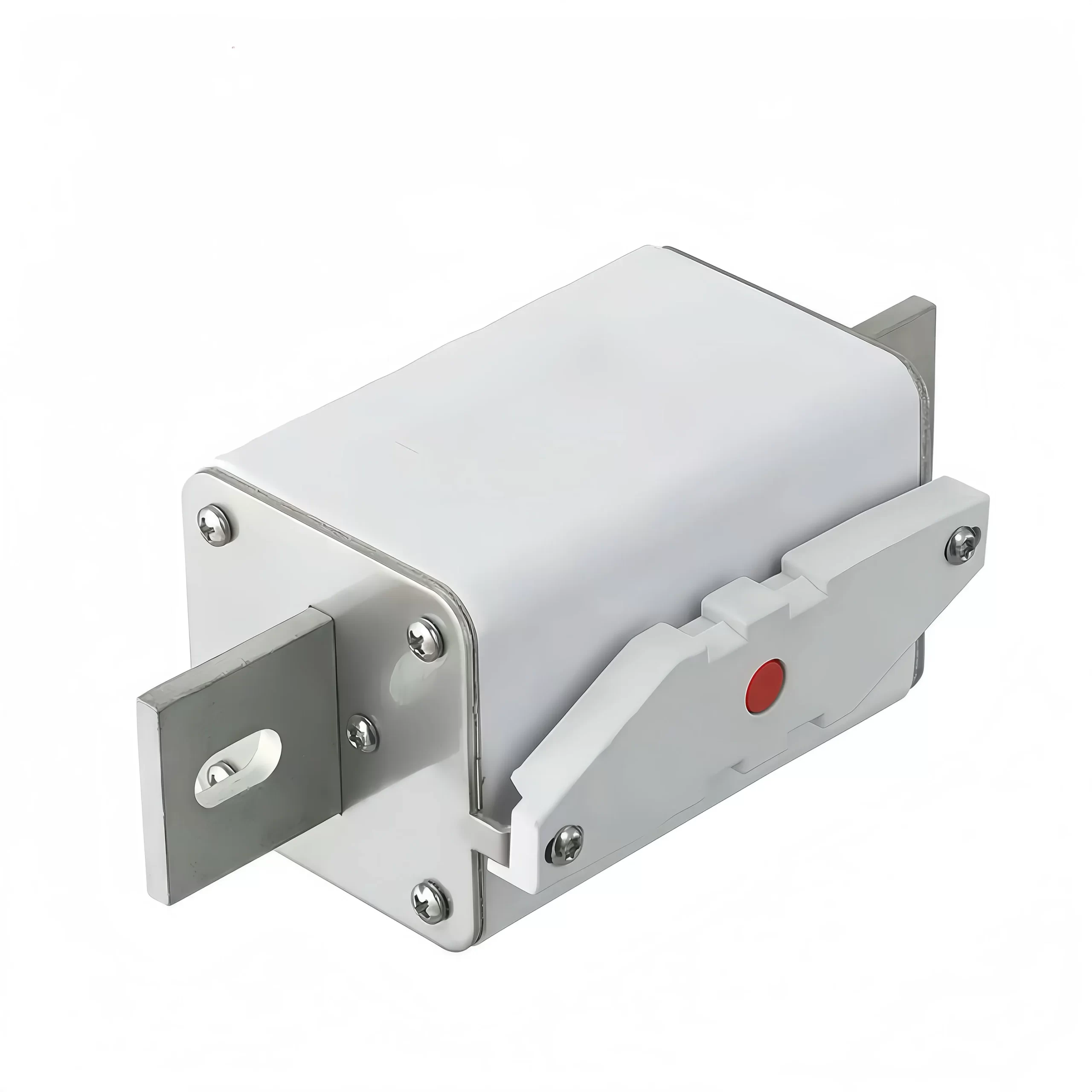

GFEVT1500-74E High Speed ​​Fuse 100A-1250A 1500Vdc/Automotive Fuses

GFEVT1500-74E High Speed ​​Fuse 100A-1250A 1500Vdc/Automotive Fuses

Dongguan Gongfu Electronics Co., Ltd. specializes in the production of: high-speed fuses, bolt fuse holders, ANL fuses, bolt fuses, MEGA fuses, MEGA fuse holders, MIDI fuses, MIDI fuse holders, blade fuses, fuses, fuse holders, fuse clips, automotive fuses, automotive fuse holders, automotive fuse boxes, DC fuses, new energy fuses, energy storage fuses, photovoltaic fuses, panel fuse holders, current fuse holders, fuse boxes, 5×20 fuse holders, 6X30 fuse holders. 10×38 fuse holders, high and low voltage fuses, semiconductor fuses, fast-acting fuses, wiring harness fuse holders, PCB fuse holders, substrate fuse holders, rail fuse holders, DC fuse holders and other fuse accessories. Our products have obtained UL, cULus, Tuv, CE, CQC and other certifications. Our products comply with ROHS and REACH standards and provide one-stop solutions.

ENQUIRY!
分类：

描述

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Dimensions (mm)
Din xxxBN-74E Dimensions

Bolted xxxB-74E Dimensions

Customize xxxK-74E Dimensions

Description

  • Design For DC Applications
  • Excellent Dc Performance
  • Superior cycling capability
  • Low Watt Losses

Standards/Approvals

  • Refer to UL 248.1 / UL 248.13
  • IEC 60269.1 / IEC 60269.4
  • Reach declaration available upon request
  • RoHS Compliant

Fuse Ratings

Connect Part No. Fuse Amps Average @250KA/1500Vdc Power Loss (W) Approvals
A²s Melting A²s Clearing 80% 100% ROHS REACH
Bolted GFEVT1500-100B-74E 100A 1150 4680 48 60 ● ●
GFEVT1500-125B-74E 125A 1750 8350 52 68 ● ●
GFEVT1500-160B-74E 160A 3800 14000 68 90 ● ●
GFEVT1500-200B-74E 200A 5200 23500 82 110 ● ●
GFEVT1500-250B-74E 250A 10400 45000 92 120 ● ●
GFEVT1500-315B-74E 315A 21238 76760 104 136 ● ●
GFEVT1500-350B-74E 350A 29180 104691 113 148 ● ●
GFEVT1500-400B-74E 400A 38468 136083 130 171 ● ●
GFEVT1500-450B-74E 450A 54749 192815 143 187 ● ●
GFEVT1500-500B-74E 500A 74371 259379 155 204 ● ●
GFEVT1500-550B-74E 550A 93073 317075 169 221 ● ●
GFEVT1500-630B-74E 630A 131578 437610 189 248 ● ●
GFEVT1500-700B-74E 700A 182476 593977 202 273 ● ●
GFEVT1500-800B-74E 800A 283377 893774 218 294 ● ●
GFEVT1500-900B-74E 900A 408596 1247411 237 305 ○ ○
GFEVT1500-1000B-74E 1000A 546988 1605152 282 362 ○ ○
GFEVT1500-1100B-74E 1100A 751540 2129888 300 385 ○ ○
GFEVT1500-1200B-74E 1200A 991418 2779209 305 391 ○ ○
*GFEVT1500-1250B-74E *1250A 1121162 3162024 314 401 ○
Connect Part No. Fuse Amps Average @250KA/1500Vdc Power Loss (W) Approvals
A²s Melting A²s Clearing 80% 100% ROHS REACH
Din GFEVT1500-100U-74E 100A 1150 4680 48 60 ● ●
GFEVT1500-125U-74E 125A 1750 8350 52 68 ● ●
GFEVT1500-160U-74E 160A 3800 14000 68 90 ● ●
GFEVT1500-200U-74E 200A 5200 23500 82 110 ● ●
GFEVT1500-250U-74E 250A 10400 45000 92 120 ● ●
GFEVT1500-315U-74E 315A 21238 76760 104 136 ● ●
GFEVT1500-350U-74E 350A 29180 104691 113 148 ● ●
GFEVT1500-400U-74E 400A 38468 136083 130 171 ● ●
GFEVT1500-450U-74E 450A 54749 192815 143 187 ● ●
GFEVT1500-500U-74E 500A 74371 259379 155 204 ● ●
GFEVT1500-550U-74E 550A 93073 317075 169 221 ● ●
GFEVT1500-630U-74E 630A 131578 437610 189 248 ● ●
GFEVT1500-700U-74E 700A 182476 593977 202 273 ● ●
GFEVT1500-800U-74E 800A 283377 893774 218 294 ● ●
GFEVT1500-900U-74E 900A 408596 1247411 237 305 ○ ○
GFEVT1500-1000U-74E 1000A 546988 1605152 282 362 ○ ○
GFEVT1500-1100U-74E 1100A 751540 2129888 300 385 ○ ○
GFEVT1500-1200U-74E 1200A 991418 2779209 305 391 ○ ○
*GFEVT1500-1250U-74E *1250A 1121162 3162024 314 401 ○ ○
Connect Part No. Fuse Amps Average @250KA/1500Vdc Power Loss (W) Approvals
A²s Melting A²s Clearing 80% 100% ROHS REACH
Customize GFEVT1500-100K-74E 100A 1150 4680 48 60 ● ●
GFEVT1500-125K-74E 125A 1750 8350 52 68 ● ●
GFEVT1500-160K-74E 160A 3800 14000 68 90 ● ●
GFEVT1500-200K-74E 200A 5200 23500 82 110 ● ●
GFEVT1500-250K-74E 250A 10400 45000 92 120 ● ●
GFEVT1500-315K-74E 315A 21238 76760 104 136 ● ●
GFEVT1500-350K-74E 350A 29180 104691 113 148 ● ●
GFEVT1500-400K-74E 400A 38468 136083 130 171 ● ●
GFEVT1500-450K-74E 450A 54749 192815 143 187 ● ●
GFEVT1500-500K-74E 500A 74371 259379 155 204 ● ●
GFEVT1500-550K-74E 550A 93073 317075 169 221 ● ●
GFEVT1500-630K-74E 630A 131578 437610 189 248 ● ●
GFEVT1500-700K-74E 700A 182476 593977 202 273 ● ●
GFEVT1500-800K-74E 800A 283377 893774 218 294 ● ●
GFEVT1500-900K-74E 900A 408596 1247411 237 305 ○ ○
GFEVT1500-1000K-74E 1000A 546988 1605152 282 362 ○ ○
GFEVT1500-1100K-74E 1100A 751540 2129888 300 385 ○ ○
GFEVT1500-1200K-74E 1200A 991418 2779209 305 391 ○ ○
*GFEVT1500-1250K-74E *1250A 1121162 3162024 314 401 ○ ○
