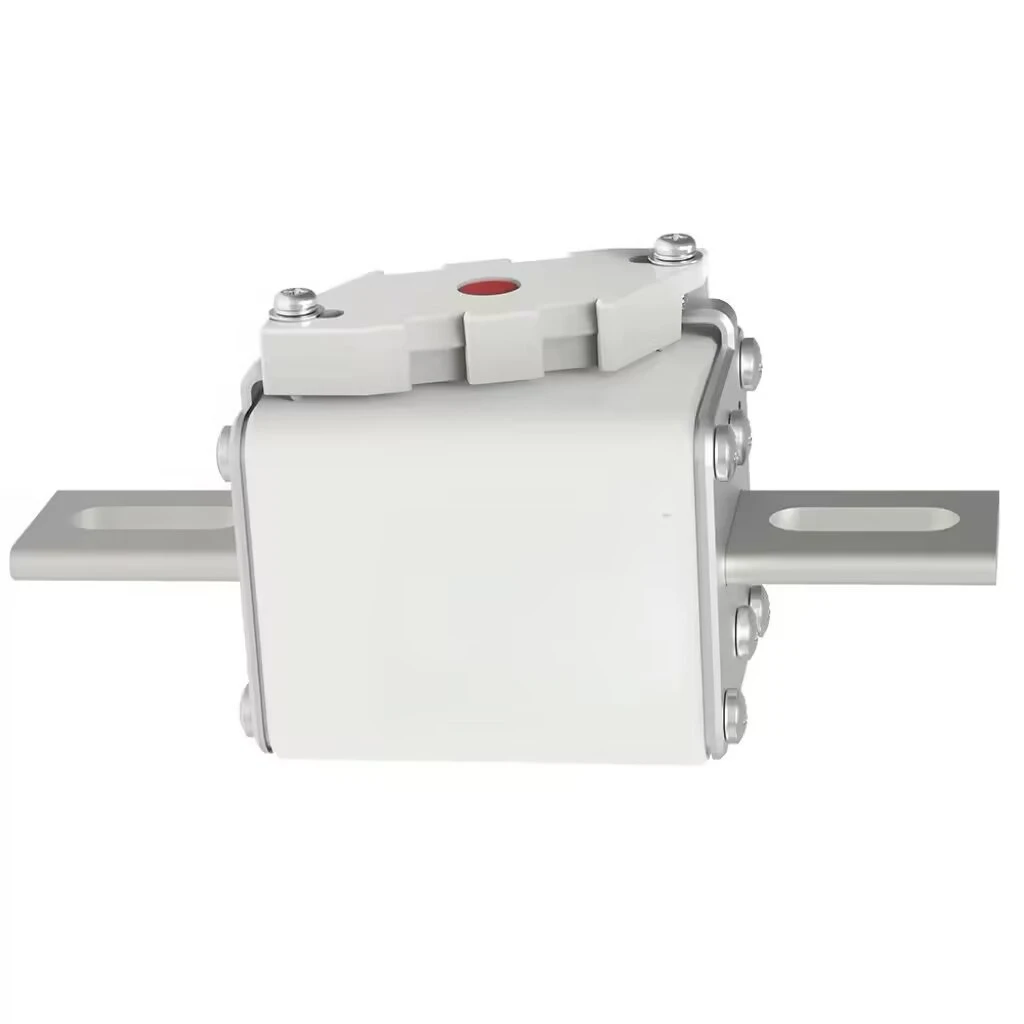

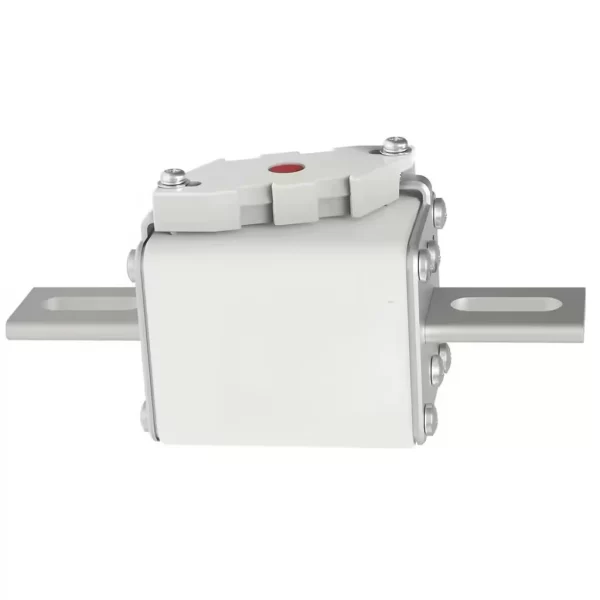

GFEVT1500-N-74 ES High Speed ​​Fuse 100A-800A 1500Vdc/Automotive fuse

GFEVT1500-N-74 ES High Speed ​​Fuse 100A-800A 1500Vdc/Automotive fuse

Dongguan Gongfu Electronics Co., Ltd. specializes in the production of: high-speed fuses, bolt fuse holders, ANL fuses, bolt fuses, MEGA fuses, MEGA fuse holders, MIDI fuses, MIDI fuse holders, blade fuses, fuses, fuse holders, fuse clips, automotive fuses, automotive fuse holders, automotive fuse boxes, DC fuses, new energy fuses, energy storage fuses, photovoltaic fuses, panel fuse holders, current fuse holders, fuse boxes, 5×20 fuse holders, 6X30 fuse holders. 10×38 fuse holders, high and low voltage fuses, semiconductor fuses, fast-acting fuses, wiring harness fuse holders, PCB fuse holders, substrate fuse holders, rail fuse holders, DC fuse holders and other fuse accessories. Our products have obtained UL, cULus, Tuv, CE, CQC and other certifications. Our products comply with ROHS and REACH standards and provide one-stop solutions.

Annex Download

ENQUIRY!
分类：

描述

Features & benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components. Greater ampacity within sizing guidelines
  • Excellent power of resisting voltaic impingement and environment temperature tolerance
  • Excellent resistance to mechanical vibration and impact resistance.

Annex Download

Dimensions (mm)
Bolted xxxBN-74ES Dimensions


Din xxxUN-74ES Dimensions

Description

  • Design For Dc Applications
  • Excellent Dc Performance
  • Superior cycling capability
  • Low Watt Losses

Standards/Approvals

  • Refer To UL 248.1/UL 248.13
  • IEC 60269.1/IEC 60269.4
  • RoHS Compliant

Fuse Ratings

Connect Part No. Fuse Amps Average @50KA/1500Vdc Power Loss (W) Approvals
A²s Melting A²t Clearing 80% 100% ROHS REACH
Bolted GFEVT1500-100BN-74ES 100A 1081 4399 45 57 ● ●
Bolted GFEVT1500-125BN-74ES 125A 1645 7849 52 64 ● ●
Bolted GFEVT1500-160BN-74ES 160A 3572 13160 69 85 ● ●
Bolted GFEVT1500-200BN-74ES 200A 4888 22090 81 104 ● ●
Bolted GFEVT1500-250BN-74ES 250A 9776 42300 93 114 ● ●
Bolted GFEVT1500-315BN-74ES 315A 19864 71440 102 128 ● ●
Bolted GFEVT1500-350BN-74ES 350A 27293 97435 111 140 ● ●
Bolted GFEVT1500-400BN-74ES 400A 35980 126652 128 161 ● ●
Bolted GFEVT1500-450BN-74ES 450A 51208 175802 140 177 ● ●
Bolted GFEVT1500-500BN-74ES 500A 69286 236492 152 192 ● ●
Bolted GFEVT1500-550BN-74ES 550A 86708 289098 165 209 ● ●
Bolted GFEVT1500-630BN-74ES 630A 122580 398997 185 234 ● ●
Bolted GFEVT1500-700BN-74ES 700A 169997 541567 199 257 ● ●
Bolted GFEVT1500-800BN-74ES 800A 263998 814912 214 277 ● ●
Connect Part No. Fuse Amps Average @50KA/1500Vdc Power Loss (W) Approvals
A²s Melting A²t Clearing 80% 100% ROHS REACH
Din GFEVT1500-100UN-74ES 100A 1081 4446 45 57 ● ●
Din GFEVT1500-125UN-74ES 125A 1645 7933 52 64 ● ●
Din GFEVT1500-160UN-74ES 160A 3572 13300 69 85 ● ●
Din GFEVVT1500-200UN-74ES 200A 4888 22325 81 104 ● ●
Din GFEVT1500-250UN-74ES 250A 9776 42750 93 114 ● ●
Din GFEVT1500-315UN-74ES 315A 19864 72200 102 128 ● ●
Din GFEVT1500-350UN-74ES 350A 27293 98471 111 140 ● ●
Din GFEVT1500-400UN-74ES 400A 35980 127999 128 161 ● ●
Din GFEVT1500-500UN-74ES 500A 69286 239035 152 192 ● ●
Din GFEVT1500-630UN-74ES 630A 122580 407578 185 234 ● ●
Din GFEVT1500-700UN-74ES 700A 169997 553214 199 257 ● ●
Din GFEVT1500-800UN-74ES 800A 263998 832437 214 277 ● ●
