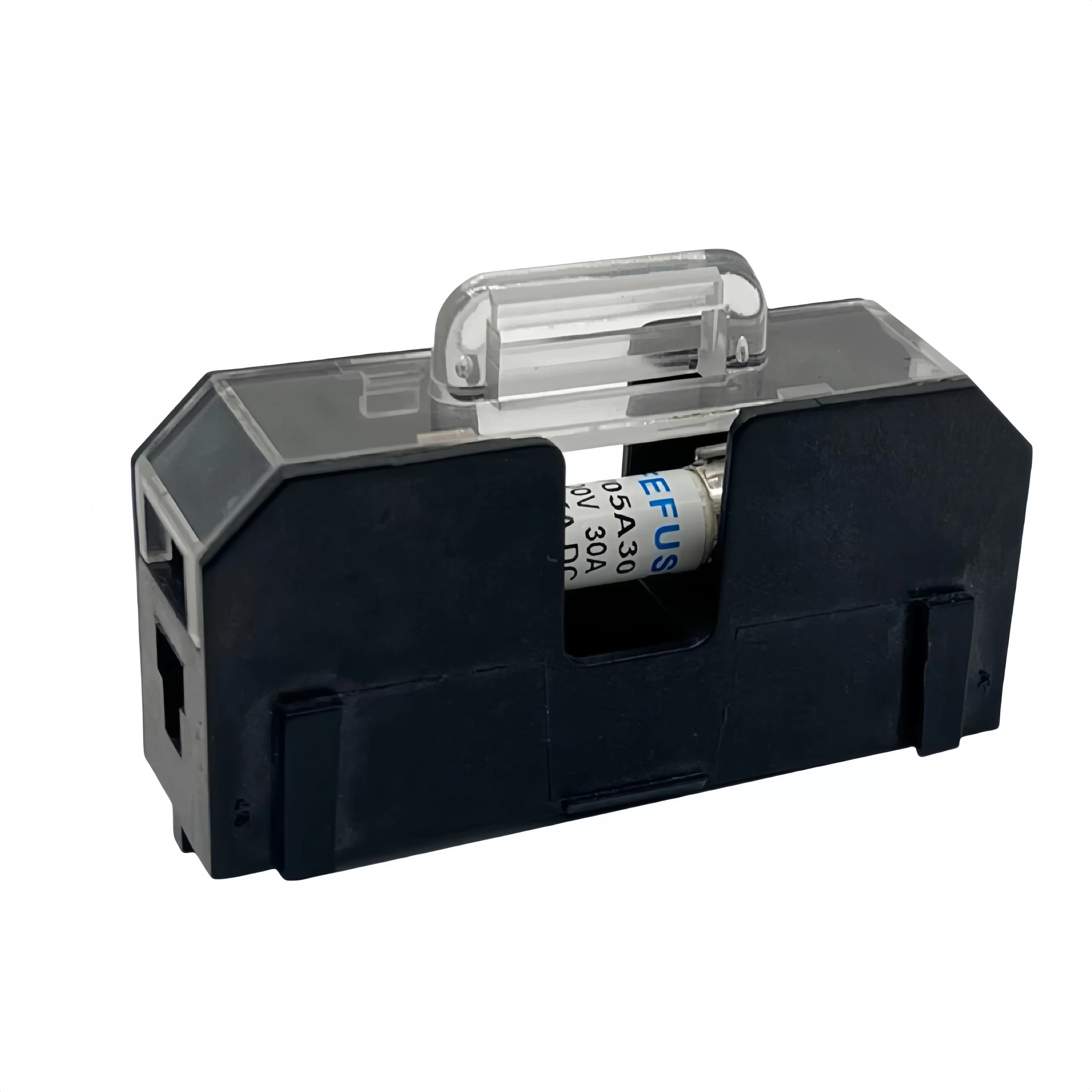

1. Product model: H10MF fuse holder
2. Product application: 10×38 fuse (GFEFUSE® H10H matching fuse)
3. Rated voltage: 1000 VDC
4. Rated current: up to 50A (bolt), 30A (clamp)
5. Dielectric strength: > 1200 V
6. Torque: 2.3 nm (20 in LBS)
7. Wire range: 14-7 AWG (1.6-8.42)
8. Clip / terminal: tinned copper alloy (M5 screw)
9. Screw and external pressing plate: galvanized steel
10. Base: thermoplastic
11. Working temperature: up to 125 °C
12. Material Flammability: UL 94 V-0
13.Base: PBT
14. Top cover: PC
