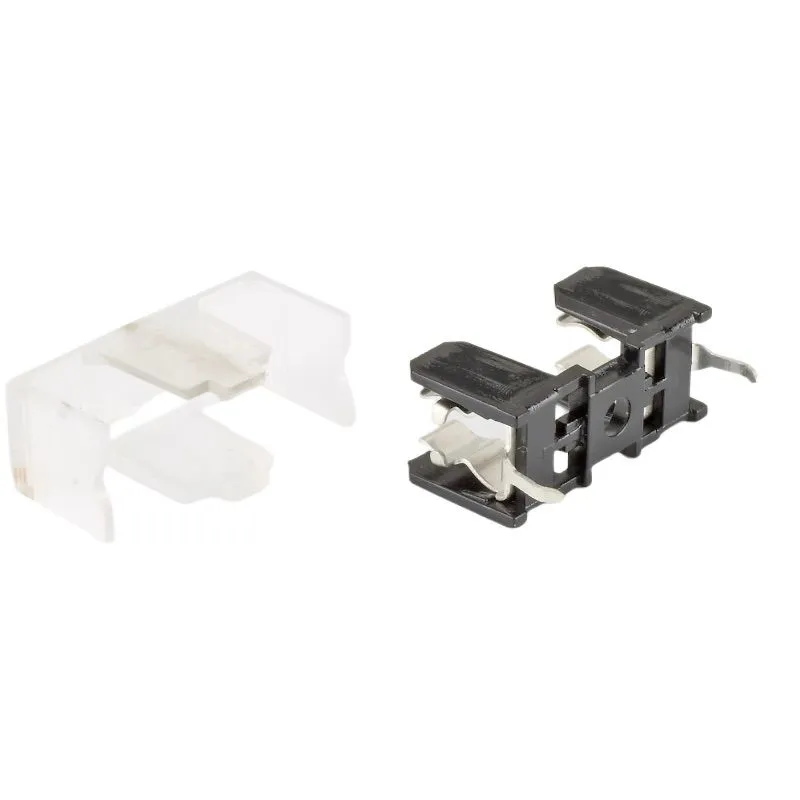

PTF/15S PCB Fuse Holder Clip 16A500V 5x20 fuse holder

PTF/15S PCB Fuse Holder Clip 16A500V 5×20 fuse holder

Dongguan Gongfu Electronics Co., Ltd. specializes in the production of: high-speed fuses, bolt fuse holders, ANL fuses, bolt fuses, MEGA fuses, MEGA fuse holders, MIDI fuses, MIDI fuse holders, blade fuses, fuses, fuse holders, fuse clips, automotive fuses, automotive fuse holders, automotive fuse boxes, DC fuses, new energy fuses, energy storage fuses, photovoltaic fuses, panel fuse holders, current fuse holders, fuse boxes, 5×20 fuse holders, 6X30 fuse holders. 10×38 fuse holders, high and low voltage fuses, semiconductor fuses, fast-acting fuses, wiring harness fuse holders, PCB fuse holders, substrate fuse holders, rail fuse holders, DC fuse holders and other fuse accessories. Our products have obtained UL, cULus, Tuv, CE, CQC and other certifications. Our products comply with ROHS and REACH standards and provide one-stop solutions.

ENQUIRY!
Category:

Description

GFEFUSE specializes in the production of fuse holders, fuses, auto fuses, auto fuse holders, DC fuses, photovoltaic fuses, fuse accessories and other one-stop solutions

Dimension Drawing





Product Introduction

Product model: PTF (15S)

Applicable fuse: 5.2x20mm

Suitable for: PCB installation and welding

Terminals: Tin copper alloy

Base: PBT + GF30. Upper cover: PC

Working voltage: 500V (250V) AC

Rated current: 16A

Working temperature: -40℃ to 130℃

Flame Retardant Grade: UL-94V0

Welding temperature: 230℃-240℃ (3 seconds)

Insulation Resistance: > 10 MΩ (500 VDC: 1 min)

Voltage withstand: 1500V (DC)

GFEFUSE specializes in the production of fuse holders, fuses, automotive fuses, automotive fuse holders, DC fuses, photovoltaic fuses, fuse accessories and other one-stop solutions. The products have obtained UL, CQC, CE, TUV and other certifications
