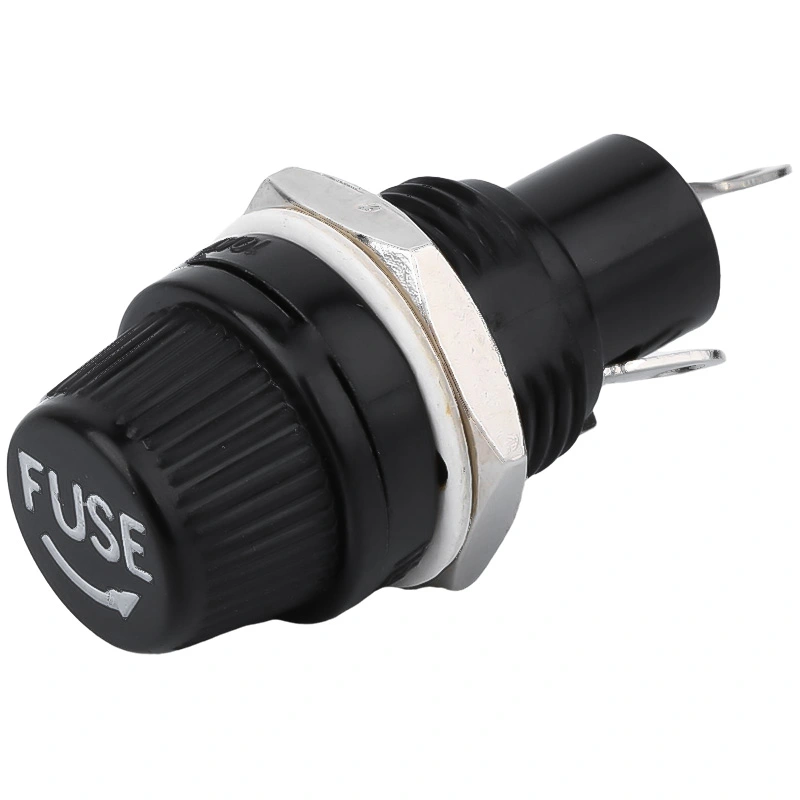

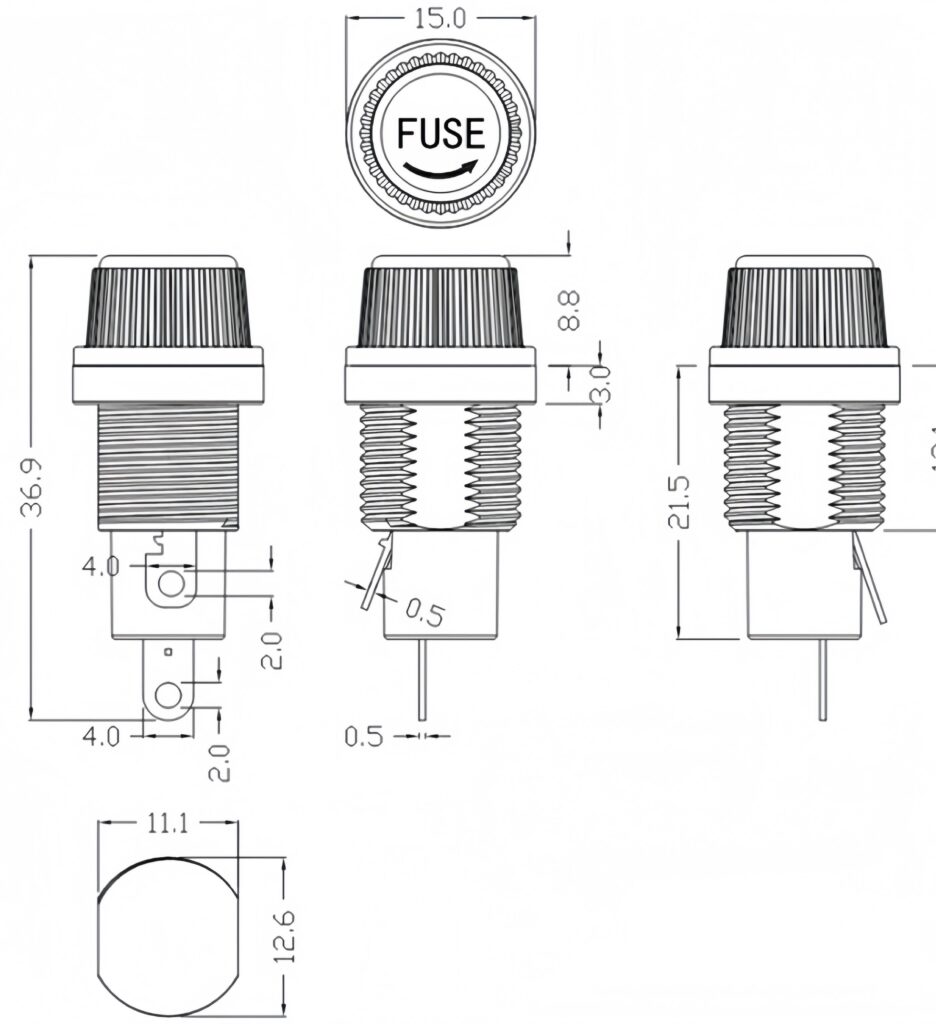

R3(12E) panel fuse holder. fuse clip 5×20 fuse holder

Fuse holder, fuse box, panel fuse holder, 5X20 fuse holder. 6X30 fuse holder. PCB fuse holder. Automotive fuse holder, DC fuse holder, rail fuse holder. 10×38 fuse holder.

  1. Product Introduction:
    • Product model: R3-12E
    • Rated current: 10A
    • Rated voltage: 250V/125V (AC/DC)
    • Fitting fuse pipe: 5 x 20mm
    • Split current: 50A
    • Base: Black Bakelite (UL-94V0)
    • Terminal: 0.4mm (phosphor)
    • Withstand voltage: 3000VAC
    • Contact resistance: <5mΩ
    • Insulation resistance: >100MΩ

评价

目前还没有评价

成为第一个“R3/12E panel fuse holder. fuse clip 5×20 fuse holder” 的评价者

您的邮箱地址不会被公开。 必填项已用 * 标注

相关产品

  • Fuse Blocks 0001038G 10x38 panel mounted fuse holder

    Fuse Blocks 0001038G 10×38 panel mounted fuse holder

    阅读更多
  • R3/55B panel fuse holder 6x30 fuse holder

    R3/55B panel fuse holder 6×30 fuse holder

    阅读更多
  • fuse block R3/9 Panel fuse holder 15A250V 6x30 fuse holder

    fuse block R3/9 Panel fuse holder 15A250V 6×30 fuse holder

    阅读更多

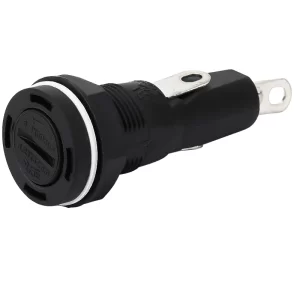

  • R3/54A Panel fuse holder 5x20 fuse holder
